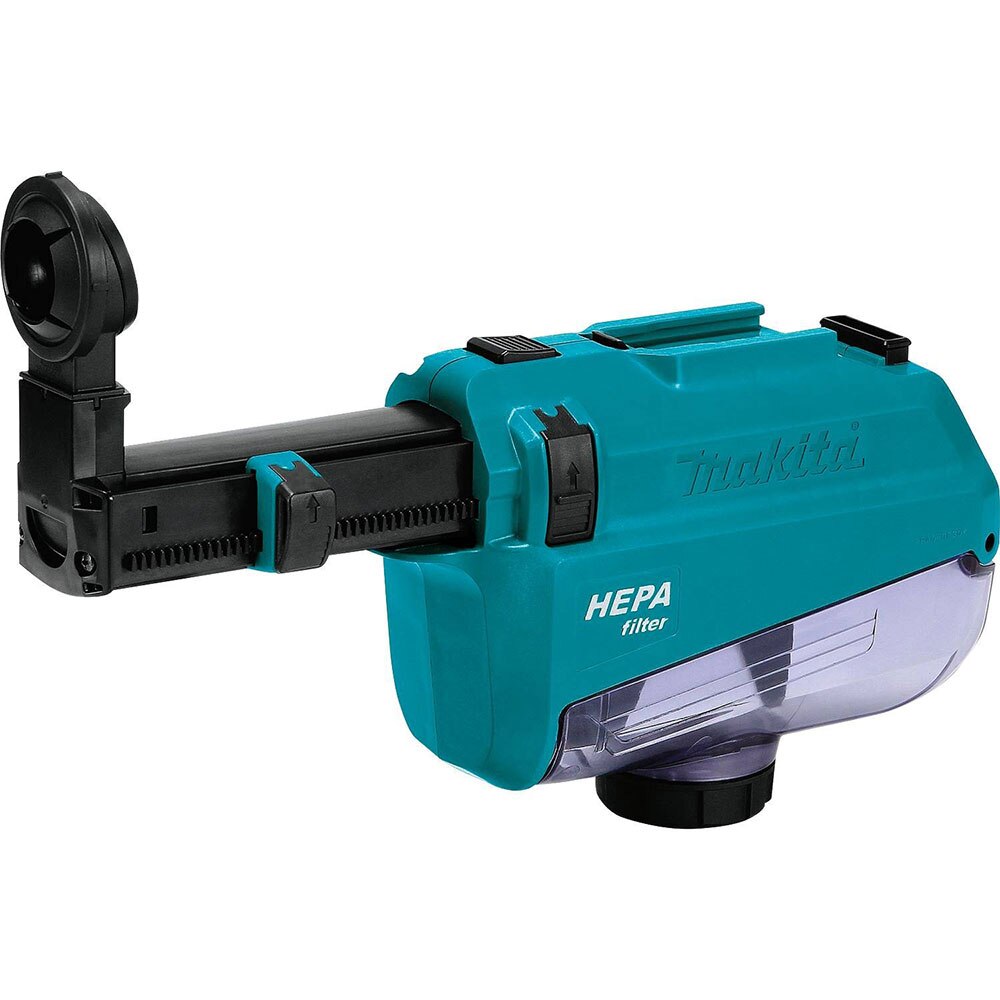

Makita DX05 Dust Extractor Attachment w/ HEPA Filter Cleaning Mechanism

Upgrading from Makita? Sell your used Makita tools or get fast cash for Makita tools at WeBuyTool.com.

INCLUDES:
• (1) HEPA Filter (197556-3)
• (1) Sealing Cap (424474-5)
• (1) HEPA Filter, DX05 (199596-7)

FEATURES:
• Captures concrete dust during drilling and is activated by the tool for operator convenience
• OSHA table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency
• Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
• Powered by secondary motor fan blade in tool to maintain concrete dust suction performance
• Extraction extension allows drilling up to 3-1/2" deep and up to 11/16" diameter holes
• Depth stop adjustment button allows for accurate drilling depth
• Transparent dust container provides needed visibility in determining container fullness
• Compatible with Makita 18V LXT® Rotary Hammer model XRH12

SPECIFICATIONS:
• HEPA filter : Yes
• Equipped Filter Efficiency : 99.97% of .3 microns
• Adjustable Depth Stops : Yes
• Maximum Hole Diameter (in.) : .687"
• Max. Hole Depth : 3-3/4"
• Container Hole Count Capacity : 50 holes of dimension 3/8”x2-3/8”
• Filter Life (Approx. container fillings) : 200
• Container Capacity : 13.52 oz.
• Overall Length : 17"
• Net Weight : 2 lbs.
• Auto shut off time : After 0 seconds


The dust extractor attachment with HEPA filter (model DX05) is for use with the 18V LXT® cordless Brushless 11/16 In. rotary hammer (XRH12). The DX06 dust collection vacuum attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA table 1 compliance. The dust extractor attachment is powered by a separate motor allowing the rotary hammer to consistently maintain peak drilling performance. The high-capacity dust container is transparent and provides an accurate level indicator of collected material. The container captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust. With a quick release, the dust container can be easily detached from the dust collection attachment when needed.
