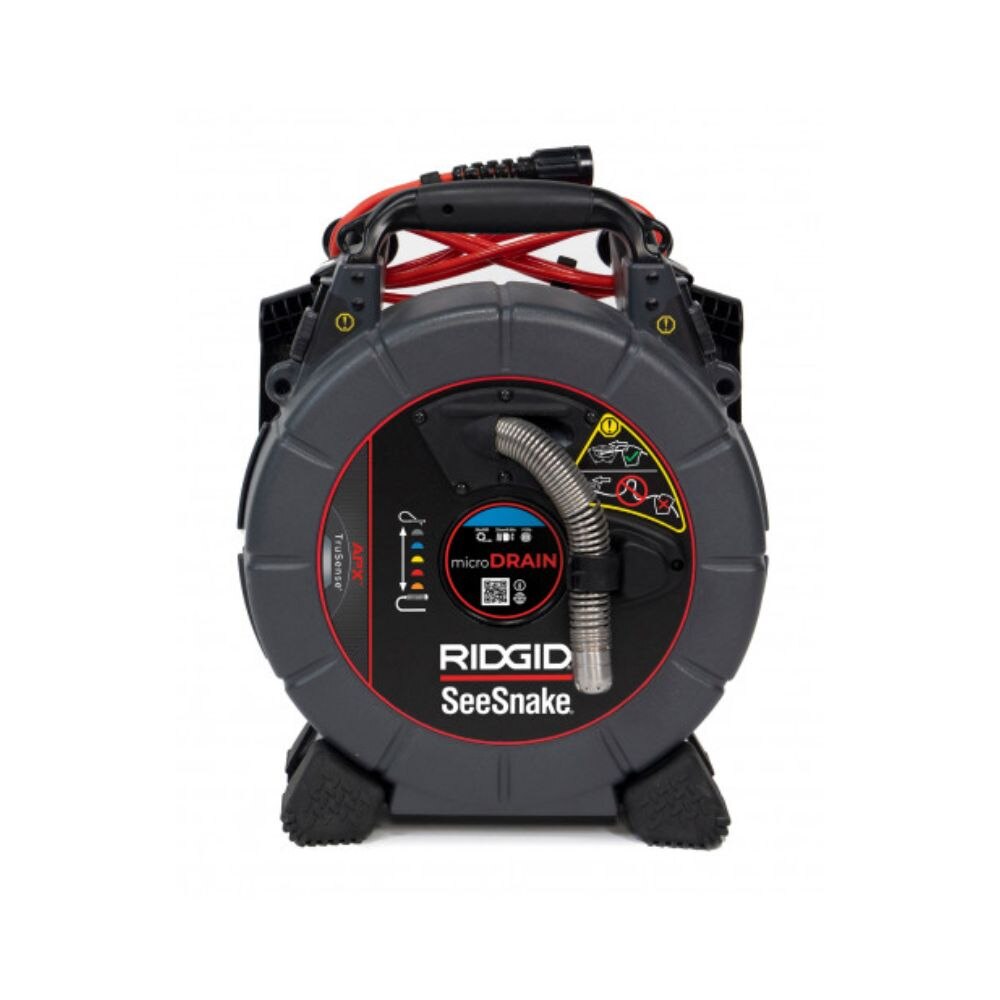

Ridgid 70023 SeeSnake MicroDRAIN APX with TruSense

INCLUDES:
• (1) Camera Reel
• (1) Kickstand
• (1) Interconnect Cable
• (1) Ball Guides
• (1) Spanner Wrench

FEATURES:
• Flexibility - High-flex push cable navigates tight turns and small diameter pipes - pass multiple 90° bends in most 1.5" (40 mm) drain lines.
• Enhanced Camera Functionality - APX camera reels offer TruSense technology with an HDR image sensor for superior in-pipe viewing and on-camera TiltSense inclinometer.
• Auto-Image Flip - Rotates camera image wihout any moving parts.
• Portability - Lightweight and compact design is one-half the size of popular inspection systems, easily stowed in a truck and carried onto the jobsite.
• Stability - Built-in kickstand for improved ergonomics can be used uprigt, at a 45 degree angle for improved leverage on four feet to provide clearance for use with CSx Via.
• Durability - Hardened stainless steel camera head and spring assembly is durable and reliable for a long service life.
• Visibility - Camera heads feature long-lasting high-efficiency LEDs that deliver better in-pipe visibility and higher color accuracy.
• Traceability - Integrated 512 Hz sonde allows for easy line tracing and locating.
• Versatility - Works with all SeeSnake monitors, including CSx Via Wi-Fi Hub, or the CA-350 inspection camera (CA-350 adpter sold serparately).

SPECIFICATIONS:
• Length: 13.3"
• Width: 8.8"
• Height 16.2"
• Drum Diameter: 12"
• Camera Length: 0.8" / 19 mm
• Camera Diameter: 0.87" / 22 mm
• Camera Light: 6 LED
• Resolution: 640 x 480 Pixels
• Frequency: 512 Hz
• Distance Measurement Type: TruSense Counter
• Data Communication: Two-Way
• Push Cable Length: 33'
• Push Cable Diameter: 0.33" / 8.3 mm
• Minimum Bend Radius: 0.75" / 19.1 mm
• System Cable Length: 10' / 3 m
• Pipe Capacity Min: 1.25" / 31.75 mm
• Pipe Capacity Max: 3" / 76.2 mm
• Color: Gray
• Material: Plastic, Stainless Steel
• Shape: Round
• Light Source: LED
• Min Operating Temperature: 32 F
• Max Operating Temperature: 115 F / 46.11111 C
• Weight: 11.6 lbs


The SeeSnake® microDRAIN APX™ is a portable and customizable diagnostic camera reel designed specifically for small pipes and conduits. It uses an advanced flexible push cable design and a proprietary small diameter camera, which allows camera inspection through very small diameter pipes, P-traps, and very small radius bends which conventional inspection systems often cannot inspect.
